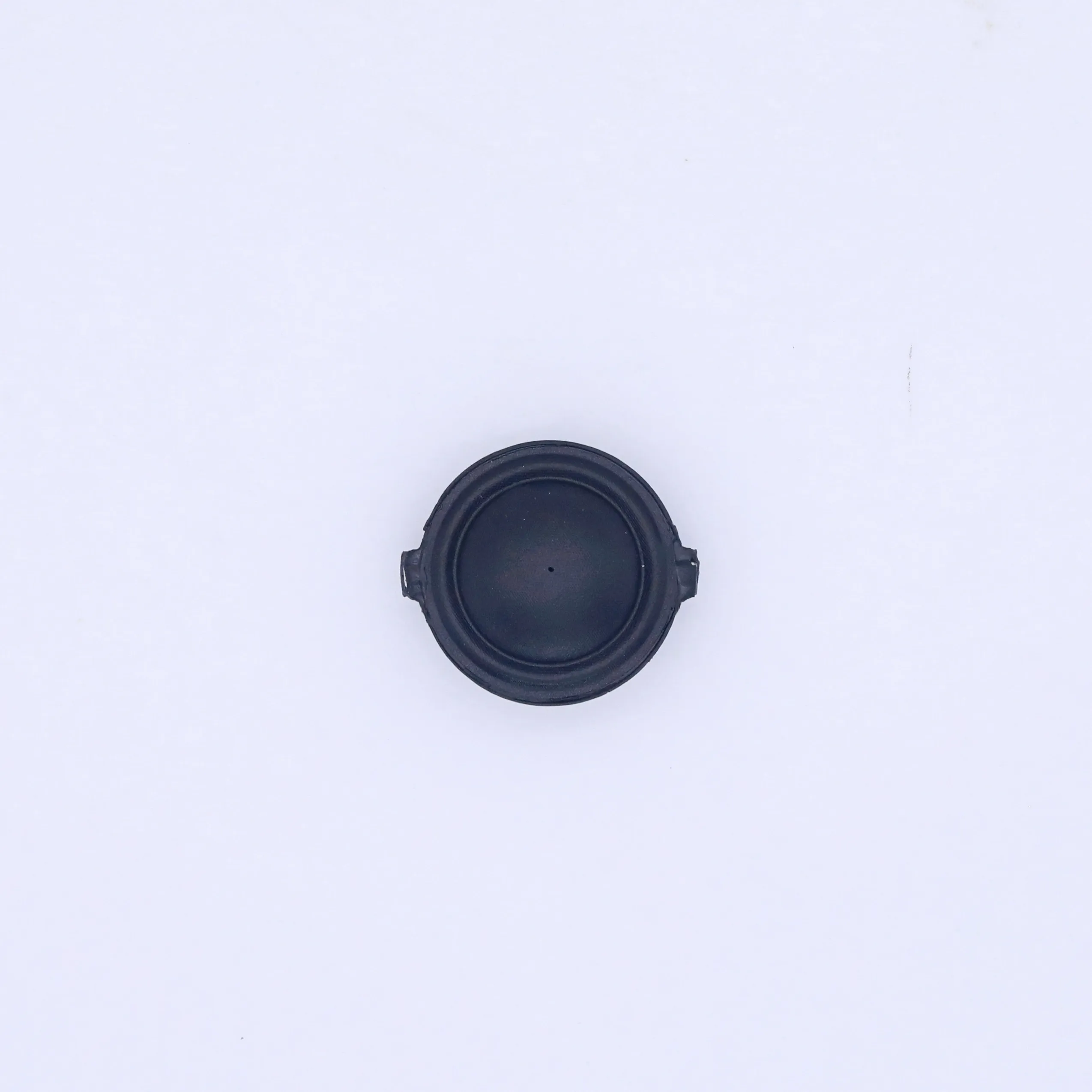

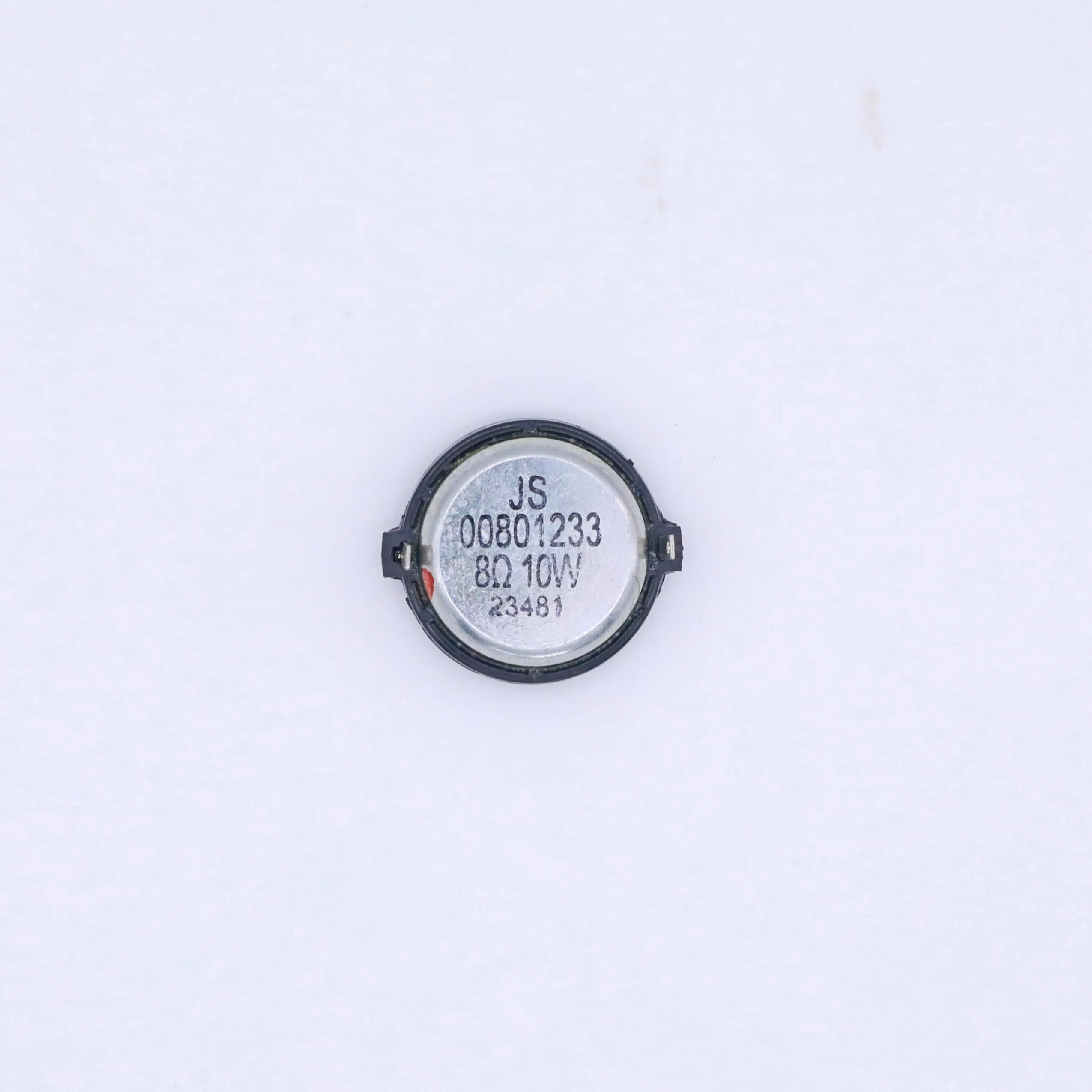

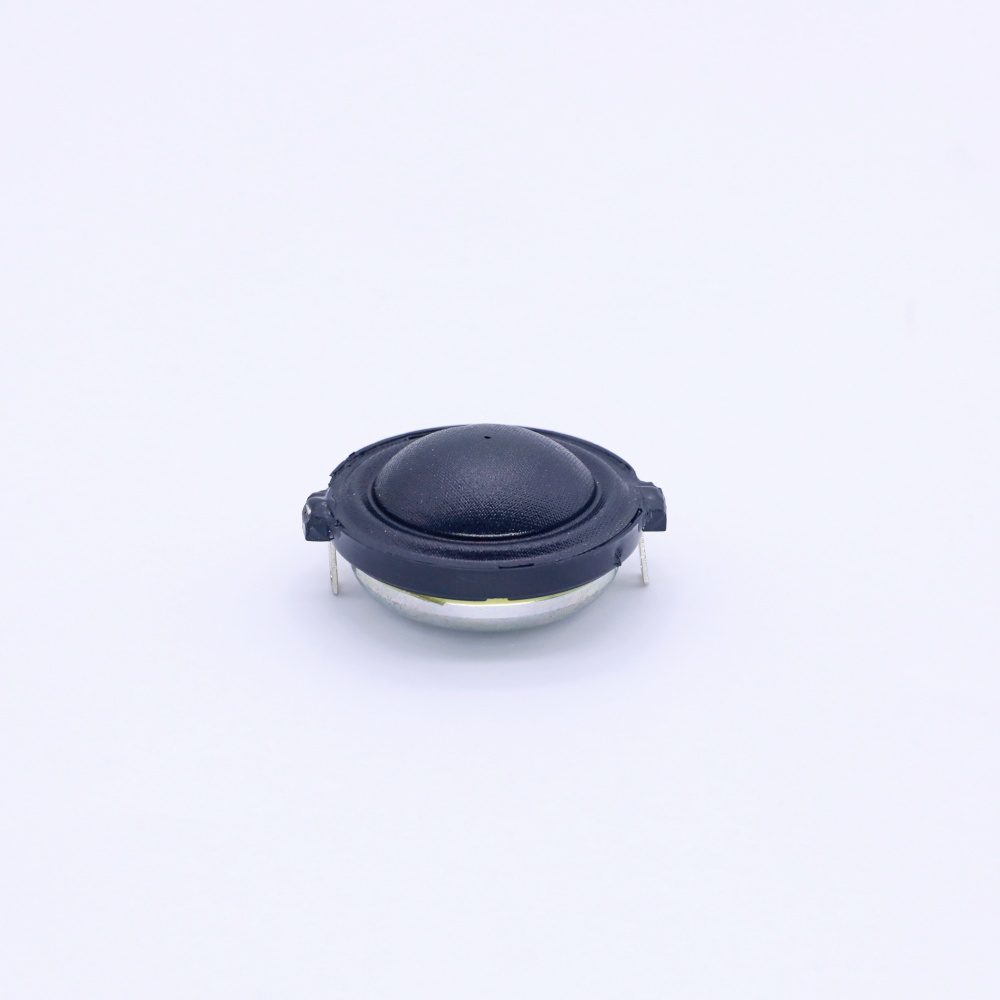

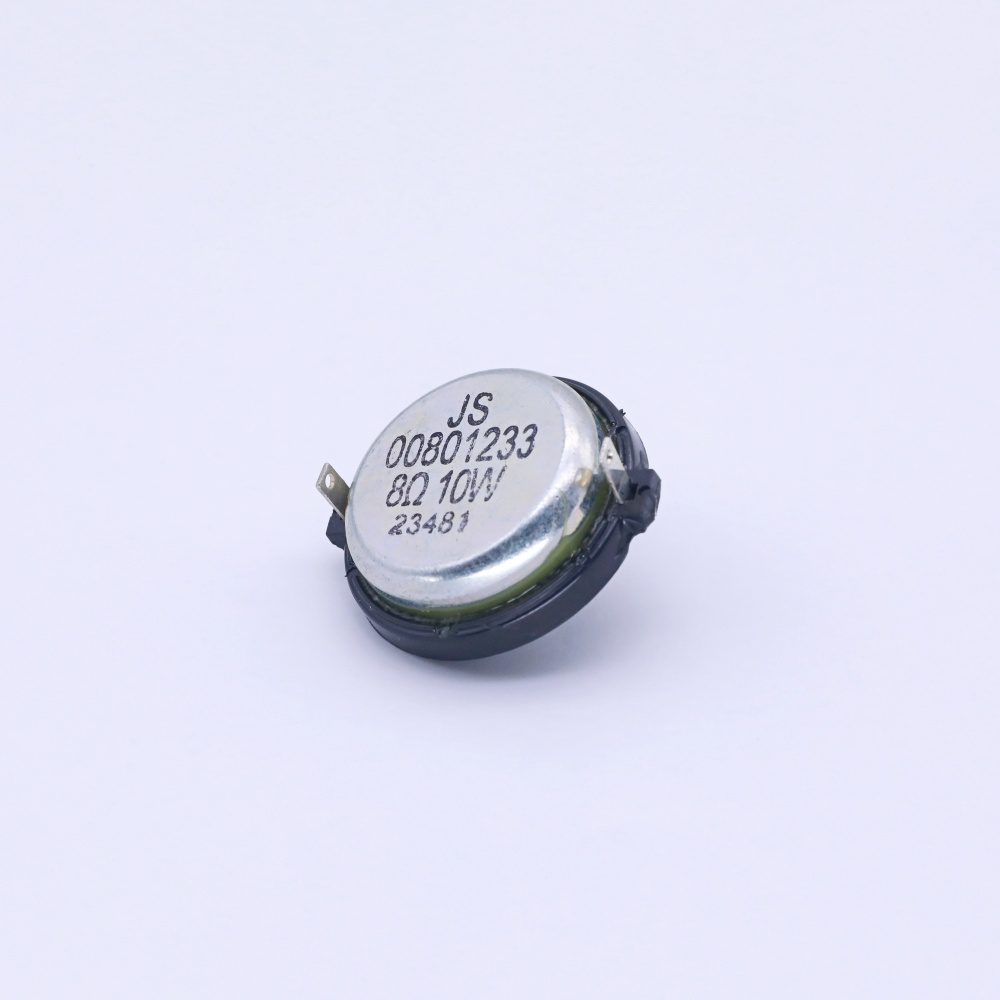

Tweeter 00801233

Feature

  • Extended HF Response to 20kHz
  • 2000Hz Resonance Design
  • 8Ω System Integration
  • Compact 20mm Architecture
  • Power Handling: 10W Normal, 15W Program
Jazz Hipster Speaker Driver 00801233

We also offer total solutions for customization.

00801233 20mm Tweeter
Parameter Specification
Transducer Size 20 mm
Impedance 8Ω ± 15%
Resonance Frequency 2000Hz ± 20%
Sensitivity @ 1W/1m 86 ± 3dB
Rated Noise Power Normal 10 W, Program Input 15 W
Frequency Range 2000Hz to 20KHz
Net Weight 27.8g
Request for Price(#9)
